Design and fabrication of the compact drying and pulverizing machine to produce fertilizer using chicken bones/ Anjocyl S. Aumentado, Eduardo D. Matocdo jr., John Carlo S. Niegos, John Vincent S. Paron, and Vincent Carlo P. Quibin jr. .--

By:

Aumentado, Anjocyl S [author ]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2024.Description: xiv, 174pages: 29cm. +1 CD-ROM (4 3/4in.)Content type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TJ 145 A96 2024

Dissertation note: College of Engineering.-- Bachelor of Science in Mechanical Engineering: Technological University of the Philippines, 2024. Summary: This study addresses sustainable agriculture and income generation for small to medium- scale root crop farmers through an innovative fertilizer production solution. Focused on the "Design and Development of a Compact Crushing and Pulverizing Machine to Produce Fertilizer Using Chicken Bones," it introduces a multifunctional machine driven by a 1HP motor, integrating a drying mechanism, crusher, and high-speed pulverizer or streamlined production. The drying process at 180 degrees Celsius for 1 hour successfully removed 42.792% of moisture from chicken bones, slightly below the 50% to 45% target. Subsequent crushing operations yielded 12-to-5-millimeter bone fragments, surpassing traditional hammer mills. The high-speed pulverizing machine refined bone particles to an impressive 400-450 microns. In rigorous testing, the machine produced 0.823kg of dried chicken bones. Quality assessment revealed elevated nutrient content, with phosphorus, nitrogen, calcium, and moisture levels at 5.497%, 1.355%, 1.440%, and 17.208%, respectively, surpassing market-available bone fertilizer. Comparison with market values emphasized the project's success, outperforming existing fertilizers in all tested categories. The "Design and Development of a Compact Crushing and Pulverizing Machine" offers a sustainable, cost-effective solution for chicken bone- based fertilizer production, addressing agricultural needs and creating additional income streams for farmers. Key words: Chicken Bones; Fertilizer; Dryer; Crusher; Pulverizer; NPK Proponents. SDG: Goal 12: Responsible Consumption and Production

List(s) this item appears in: COE- BS Mechanical Engineering

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Notes	Date due	Barcode
Bachelor's Thesis COE	TUP Manila Library	Thesis Section-2nd floor	BTH TJ 145 A96 2024 (Browse shelf(Opens below))	c.1.	Not for loan	For library use only		BTH0004754

Thesis (undergraduate)

College of Engineering.-- Bachelor of Science in Mechanical Engineering: Technological University of the Philippines, 2024.

Includes bibliography:

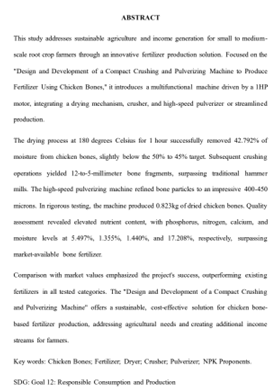

This study addresses sustainable agriculture and income generation for small to medium-
scale root crop farmers through an innovative fertilizer production solution. Focused on the

"Design and Development of a Compact Crushing and Pulverizing Machine to Produce
Fertilizer Using Chicken Bones," it introduces a multifunctional machine driven by a 1HP
motor, integrating a drying mechanism, crusher, and high-speed pulverizer or streamlined
production.
The drying process at 180 degrees Celsius for 1 hour successfully removed 42.792% of
moisture from chicken bones, slightly below the 50% to 45% target. Subsequent crushing
operations yielded 12-to-5-millimeter bone fragments, surpassing traditional hammer
mills. The high-speed pulverizing machine refined bone particles to an impressive 400-450
microns. In rigorous testing, the machine produced 0.823kg of dried chicken bones. Quality
assessment revealed elevated nutrient content, with phosphorus, nitrogen, calcium, and
moisture levels at 5.497%, 1.355%, 1.440%, and 17.208%, respectively, surpassing
market-available bone fertilizer.
Comparison with market values emphasized the project's success, outperforming existing
fertilizers in all tested categories. The "Design and Development of a Compact Crushing

and Pulverizing Machine" offers a sustainable, cost-effective solution for chicken bone-
based fertilizer production, addressing agricultural needs and creating additional income

streams for farmers.

Key words: Chicken Bones; Fertilizer; Dryer; Crusher; Pulverizer; NPK Proponents.
SDG: Goal 12: Responsible Consumption and Production
