Development of hybrid-powered organic air purifier/ Jerome B. Francisco, Jerome P. Quipot, Kyle Andrei J. Suello, Joshua James M. Terencio, and Carl R. Tinao .--

By:

Francisco, Jerome B [author ]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2023.Description: x, 91pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TJ 145 F73 2023

Dissertation note: College of Industrial Technology .-- Bachelor of Engineering Technology major in Mechanical Technology: Technological University of the Philippines, 2023. Summary: Air pollution is a global problem that continuously worsens as time passes. Unfortunately, it contributes significantly to various respiratory diseases and deaths around the world. To address this, many studies have shown that air purifiers can effectively improve air quality conditions. However, there is still a lack of research on their cost- effectiveness and use of sustainable materials. Therefore, this project study aimed to design, develop, test, and evaluate an air purifying system using both conventional and solar energy sources and locally available organic filters such as coconut husks and carbonized rice hull. The prototype was tested in a controlled room with an initial air quality measurements of 4.36 parts-per-million (ppm) TVOC, 0.11ppm HCHO, and 29.1 PM10. After conducting series of tests, test results show that HCHO decreased from 0.11 to 0.09 ppm, and PM10 with a decrease from 29.1 micrograms per cubic meter (μ g/m3 ) to 22.1μ g/m3 . The results imply that the system is effective in reducing air contaminants. Moreover, thirty respondents, composed of industry experts and engineering students, evaluated the prototype and rated it as very acceptable (x̅=4.47), signifying that the system is functional, workable, durable, safe, aesthetic and economical. The primary beneficiaries of the project are the people working in an enclosed room with poor ventilation, and people with allergies, asthma and other respiratory diseases. The outcome of this project study aims to contribute to the United Nations Sustainable Development Goals 3 and 7, promoting good health and ensuring access to sustainable energy.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis CIT	TUP Manila Library	Thesis Section-2nd floor	BTH TJ 145 F73 2023 (Browse shelf(Opens below))	c.1.	Not for loan		BTH0005544

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH TJ 145 D59 2023 Development of Pedal Switch Hammering Machine for Forging	BTH TJ 145 D65 2025 Development of motorized paving block molder/	BTH TJ 145 F35 2025 Development of microcontroller-based bar feeder system for power hacksaw/	BTH TJ 145 F73 2023 Development of hybrid-powered organic air purifier/	BTH TJ 145 G36 2023 Development of dehydrator and grider for aromatic spices/	BTH TJ 145 G37 2023 Development of modular welding fixture with safety apparatus/	BTH TJ 145 H56 2024 Development of dual-purpose creeper with tool tray/	Next

Bachelor's thesis

College of Industrial Technology .-- Bachelor of Engineering Technology major in Mechanical Technology: Technological University of the Philippines, 2023.

Includes bibliography:

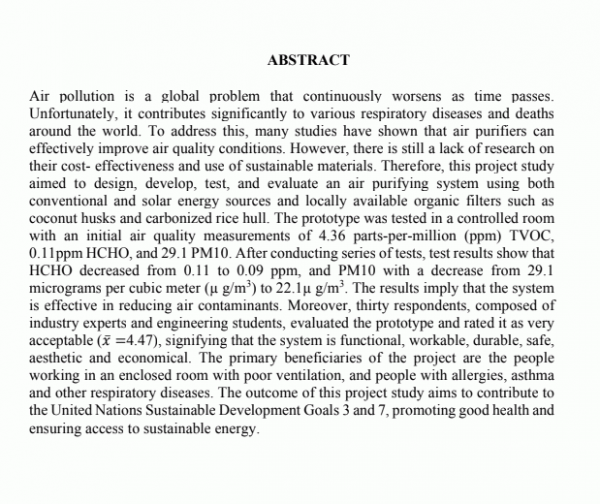

Air pollution is a global problem that continuously worsens as time passes.
Unfortunately, it contributes significantly to various respiratory diseases and deaths
around the world. To address this, many studies have shown that air purifiers can
effectively improve air quality conditions. However, there is still a lack of research on
their cost- effectiveness and use of sustainable materials. Therefore, this project study
aimed to design, develop, test, and evaluate an air purifying system using both
conventional and solar energy sources and locally available organic filters such as
coconut husks and carbonized rice hull. The prototype was tested in a controlled room
with an initial air quality measurements of 4.36 parts-per-million (ppm) TVOC,
0.11ppm HCHO, and 29.1 PM10. After conducting series of tests, test results show that
HCHO decreased from 0.11 to 0.09 ppm, and PM10 with a decrease from 29.1
micrograms per cubic meter (μ g/m3

) to 22.1μ g/m3

. The results imply that the system
is effective in reducing air contaminants. Moreover, thirty respondents, composed of
industry experts and engineering students, evaluated the prototype and rated it as very
acceptable (x̅=4.47), signifying that the system is functional, workable, durable, safe,
aesthetic and economical. The primary beneficiaries of the project are the people
working in an enclosed room with poor ventilation, and people with allergies, asthma
and other respiratory diseases. The outcome of this project study aims to contribute to
the United Nations Sustainable Development Goals 3 and 7, promoting good health and
ensuring access to sustainable energy.
