Development of foot-operated hydraulic milling vise with independent jaws/ Jose Ricardo R. Bangud, Jerson S. Bernil, Charlton Jules S. Carpo, Adrien F. Lorenzo, and Andre J. Reyes .--

By:

Bangud, Jose Ricardo R [author ]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2022.Description: 74pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TJ 145 B36 2022

Dissertation note: College of Industrial Technology .-- Bachelor of Engineering Technology major in Mechanical Technology: Technological University of the Philippines, 2022. Summary: A vise is a mechanical apparatus to secure a workpiece to allow work to be performed. Vises have two (2) parallel jaws, one (1) fixed and the other movable, threaded in and out by a screw and lever. Vise is the most commonly used tool in a machine shop. It can hold different workpiece varieties, making benchwork or machine work easier. Due to its spectacular design, it can make machinist life easier. It consists of two (2 )jaws that can securely clamp the workpiece, whatever the shape is. A lead screw is responsible for moving the jaw and a base where an operator can securely mount the vise. A standard mechanical vise is practical enough to serve its purpose. However, the industry values precision, time, and overall convenience. Moreover, though vise is convenient, it also has many downsides, especially in a world where everything is almost automated. That is why the researchers make a new design that can exceed the previous design regarding those categories. That is why the Foot-operated Hydraulic Milling Vise is made. The first goal of this design is to remove the clamping limitation of vice by making the jaws independent, so an operator can easily clamp the more extended and broader workpiece. The second is to make the user's hand more versatile to do other operations while clamping the workpiece. The researchers make the clamping mechanism to be operated by foot so the user's hand can focus on doing other stuff. Furthermore, the third is to reduce the set-up time by making the clamping mechanism automatic.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis CIT	TUP Manila Library	Thesis Section-2nd floor	BTH TJ 145 B36 2022 (Browse shelf(Opens below))	c.1.	Not for loan		BTH0005571

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH TJ 145 B33 2025 Development of paddy weeder with snail remover attachment/	BTH TJ 145 B35 2022 Development of coolant filtration and application system for conventional machines/	BTH TJ 145 B35 2023 Development of adjustable allen key/	BTH TJ 145 B36 2022 Development of foot-operated hydraulic milling vise with independent jaws/	BTH TJ 145 B36 2025 Development of semi-automatic dual-axis pushcart loader/	BTH TJ 145 B36 2025 Development of laser engraver with multi-axis clamp/	BTH TJ 145 B38 2022 Development of automatic de-feathering machine for chickens/	Next

Bachelor's thesis

College of Industrial Technology .-- Bachelor of Engineering Technology major in Mechanical Technology: Technological University of the Philippines, 2022.

Includes bibliographic references and index.

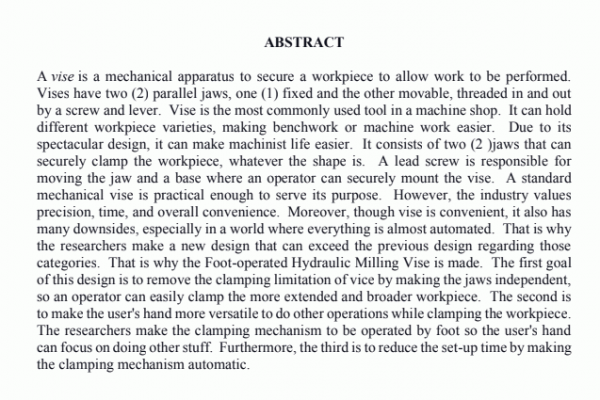

A vise is a mechanical apparatus to secure a workpiece to allow work to be performed.
Vises have two (2) parallel jaws, one (1) fixed and the other movable, threaded in and out
by a screw and lever. Vise is the most commonly used tool in a machine shop. It can hold
different workpiece varieties, making benchwork or machine work easier. Due to its
spectacular design, it can make machinist life easier. It consists of two (2 )jaws that can
securely clamp the workpiece, whatever the shape is. A lead screw is responsible for
moving the jaw and a base where an operator can securely mount the vise. A standard
mechanical vise is practical enough to serve its purpose. However, the industry values
precision, time, and overall convenience. Moreover, though vise is convenient, it also has
many downsides, especially in a world where everything is almost automated. That is why
the researchers make a new design that can exceed the previous design regarding those
categories. That is why the Foot-operated Hydraulic Milling Vise is made. The first goal
of this design is to remove the clamping limitation of vice by making the jaws independent,
so an operator can easily clamp the more extended and broader workpiece. The second is
to make the user's hand more versatile to do other operations while clamping the workpiece.
The researchers make the clamping mechanism to be operated by foot so the user's hand
can focus on doing other stuff. Furthermore, the third is to reduce the set-up time by making
the clamping mechanism automatic.
