Rheological and mechanical properties of fiber-reinforced self-compacting concrete using basalt as aggregate replacement/ Feil Lyod R. Amil, Ma. Regina A. Dela Cruz, Emmanuel H. Embido, John Carlo Lapitan, Arabella L. Masangkay, and Jericho O. Rosales.--

By:

Amil, Feil Lyod R [author]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2024. Description: xviii, 181pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TA 145 A45 2024

Dissertation note: College of Engineering.-- Bachelor of science in civil engineering Technological University of the Philippines, 2024. Summary: Self-compacting concrete (SCC) is valued for its high fluidity and ability to fill molds without external vibration, making it ideal for heavily reinforced constructions. However, optimizing its mechanical properties and workability remains a challenge. Incorporating polypropylene fibers (PPF) and polycarboxylate ether (PCE) has shown potential to enhance both rheological and mechanical properties, while replacing traditional aggregates with basalt offers an environmentally friendly alternative. This study investigates the effects of basalt aggregates (BA) and polypropylene fibers on SCC's rheological and mechanical properties, with coarse aggregates replaced by 0%, 25%, 50%, 75%, and 100% basalt, and PPF added at 0.05% and 0.1% of concrete volume. The PCE-based superplasticizer dosage was kept constant at 2.2% of cement weight with a water-cement (w/c) ratio of 0.9. Fresh state tests—Slump Flow, T500 Slump Flow, V-Funnel, and L-Box—were conducted per EFNARC Guidelines, with compressive, flexural, and split-tensile strengths evaluated at 7, 14, and 28 days. Results indicated that increasing PPF and basalt content reduced workability, while SCC mixes without PPF showed superior mechanical properties. The suitable mix, A1 (0% PPF, 25% gravel, 75% basalt), achieved a 735 mm Slump Flow, 6.26-second V-Funnel time, and 0.813 L-Box ratio, with 28-day strengths of 48.333 MPa (compressive), 5.617 MPa (split-tensile), and 5.963 MPa (flexural). In conclusion, the combination of basalt aggregates and polypropylene fibers significantly influences SCC properties, underscoring the need for precise mix designs to balance workability and strength.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis COE	TUP Manila Library	Thesis Section-2nd floor	BTH TA 145 A45 2024 (Browse shelf(Opens below))	c.1.	Not for loan		BTH0005749

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH TA 145 A43 2024 Physical and mechanical property characterization of lightweight concrete block utilizing recycled cork as partial aggregate replacement /	BTH TA 145 A43 2024 Redevelopment plan and production of polyethylene terephthalate (pet) reinforced concrete paving blocks for camella homes iv-a park, barangay pamplona tres, las piñas city/	BTH TA 145 A44 2023 Property characterization of glass fiber-reinforces concrete tactile paving block using waste marble powder as partial replacement to fine aggregates/	BTH TA 145 A45 2024 Rheological and mechanical properties of fiber-reinforced self-compacting concrete using basalt as aggregate replacement/	BTH TA 145 A46 2023 Flood hazard assessment: flood mapping in barangay san juan i, noveleta, cavite using analytical hierarchy process (ahp) and geographic information system (gis)/	BTH TA 145 A46 2023 Material quantity surveying and monitoring for low rise building in the philippines using software/	BTH TA 145 A46 2024 Mapping of plumbing layout and performance evaluation of existing water supply system in technological university of the philippines – manila using openflows watergems/	Next

Bachelor's Thesis

College of Engineering.-- Bachelor of science in civil engineering Technological University of the Philippines, 2024.

Includes bibliographic references and index.

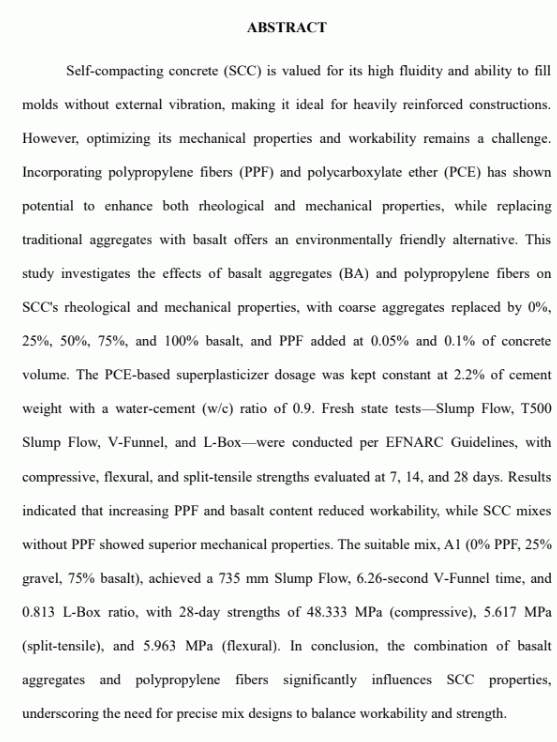

Self-compacting concrete (SCC) is valued for its high fluidity and ability to fill
molds without external vibration, making it ideal for heavily reinforced constructions.
However, optimizing its mechanical properties and workability remains a challenge.
Incorporating polypropylene fibers (PPF) and polycarboxylate ether (PCE) has shown
potential to enhance both rheological and mechanical properties, while replacing
traditional aggregates with basalt offers an environmentally friendly alternative. This
study investigates the effects of basalt aggregates (BA) and polypropylene fibers on
SCC's rheological and mechanical properties, with coarse aggregates replaced by 0%,
25%, 50%, 75%, and 100% basalt, and PPF added at 0.05% and 0.1% of concrete
volume. The PCE-based superplasticizer dosage was kept constant at 2.2% of cement
weight with a water-cement (w/c) ratio of 0.9. Fresh state tests—Slump Flow, T500
Slump Flow, V-Funnel, and L-Box—were conducted per EFNARC Guidelines, with
compressive, flexural, and split-tensile strengths evaluated at 7, 14, and 28 days. Results
indicated that increasing PPF and basalt content reduced workability, while SCC mixes
without PPF showed superior mechanical properties. The suitable mix, A1 (0% PPF, 25%
gravel, 75% basalt), achieved a 735 mm Slump Flow, 6.26-second V-Funnel time, and
0.813 L-Box ratio, with 28-day strengths of 48.333 MPa (compressive), 5.617 MPa
(split-tensile), and 5.963 MPa (flexural). In conclusion, the combination of basalt
aggregates and polypropylene fibers significantly influences SCC properties,
underscoring the need for precise mix designs to balance workability and strength.
