Printable digital-sensor diagnostic tester for common type of air conditioner/ Christian M. Bagood, Cyrill Roi D. Bauso, Wilmark R. Cahilig, Harrold T. Fillomena, Jayson M. Ibita, and Louiebert E. Viray.--

By:

Bagood, Christian M [author ]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2019.Description: xiv, 159pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TK 146 B34 2019

Dissertation note: College of Engineering.-- Bachelor of science in electrical engineering: Technological University of the Philippines, 2019. Summary: Air conditioning unit technicians use different kinds of equipment or apparatus when doing their work to inspect the air conditioning unit. Considering many parameters such as pressure, temperature, airflow and leak test. As a result, they must bring a lot of equipments separately and it is a hassle when they are commuting. Fortunately, in the advent of technology, it can be put together and combine into a single apparatus and made it smaller and portable. The goal of this study is to develop a portable air conditioning unit analyzer using microprocessor called Arduino mega and installed on it are different type of sensors such as thermal, pressure, gas and measuring instruments, anemometer, voltmeter, and ammeter. It will act as a debugger to show the problem of the air conditioning unit on an Android tablet. It can also print out the result on a thermal printer wirelessly via Bluetooth. Today’s existing technology that used in troubleshooting air conditioning unit focus only in one parameter, existing device such as refrigerant identifier and smart thermostats for leakage detection. “The Advance Monitoring System for Aircon Maintenance” determine all important parameters in troubleshooting non-ducted air conditioning unit such as pressure, temperature, airflow and current rating, the device can also help in leak detection. The device was tested to 14 air conditioning units, which compose of 10 units window type and 4 units, floor stand split type, 14 out of 14 the diagnosis was proven all correct based on the before and after troubleshooting of the ACU’s. The device able to do its purpose in helping the user to reduce the time in determining the trouble and to function as all in one device.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis COE	TUP Manila Library	Thesis Section-2nd floor	BTH TK 146 B34 2019 (Browse shelf(Opens below))	c.1.	Not for loan		BTH0005206

Bachelor's thesis

College of Engineering.-- Bachelor of science in electrical engineering: Technological University of the Philippines, 2019.

Includes bibliographic references and index.

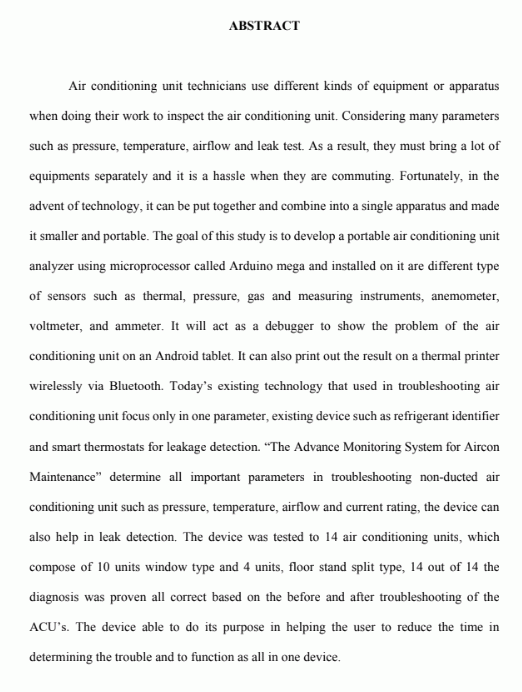

Air conditioning unit technicians use different kinds of equipment or apparatus
when doing their work to inspect the air conditioning unit. Considering many parameters
such as pressure, temperature, airflow and leak test. As a result, they must bring a lot of
equipments separately and it is a hassle when they are commuting. Fortunately, in the
advent of technology, it can be put together and combine into a single apparatus and made
it smaller and portable. The goal of this study is to develop a portable air conditioning unit
analyzer using microprocessor called Arduino mega and installed on it are different type
of sensors such as thermal, pressure, gas and measuring instruments, anemometer,
voltmeter, and ammeter. It will act as a debugger to show the problem of the air
conditioning unit on an Android tablet. It can also print out the result on a thermal printer
wirelessly via Bluetooth. Today’s existing technology that used in troubleshooting air
conditioning unit focus only in one parameter, existing device such as refrigerant identifier
and smart thermostats for leakage detection. “The Advance Monitoring System for Aircon
Maintenance” determine all important parameters in troubleshooting non-ducted air
conditioning unit such as pressure, temperature, airflow and current rating, the device can
also help in leak detection. The device was tested to 14 air conditioning units, which
compose of 10 units window type and 4 units, floor stand split type, 14 out of 14 the
diagnosis was proven all correct based on the before and after troubleshooting of the
ACU’s. The device able to do its purpose in helping the user to reduce the time in
determining the trouble and to function as all in one device.
