Development of motor control trainer integrated with variable frequency drive/ Daniel Luis M. Briones, Mike Gabriel R. Burgos, Johann Jedreck G. Escober, Patricia Shane V. Labandero, and John Patrick V. Sedantes.--

By:

Briones, Daniel Luis M [author]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2025.Description: xiii, 122pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TK 146 B75 2025

Dissertation note: College of Engineering.-- Bachelor of science in electrical engineering: Technological University of the Philippines, 2025. Summary: This research discusses the development of a Variable Frequency Drive (VFD)- integrated Motor Control Trainer intended for use as an instructional tool to promote hands- on learning in electrical motor control. Knowing the limitations in industrial equipment access in our engineering department, the study aims to give students useful experience enhancing their theoretical education. Among the important control component, the trainer uses magnetic contactors, overload relays, push buttons, pilot lamps, an emergency stop mechanism, and a Delta MS300 VFD. Students may partake in a range of motor control activities including basic start/stop, reverse motion, jog control, and variable speed operation—using the VFD. To replicate real-world industrial settings, more complex activities including sequential motor control and Wye-Delta low voltage beginning are also included. Testing a single-phase power input with the VFD to generate a three-phase output helped one determine the performance of the system. With consistent motor response as well as practical safety features, results showed the trainer performed as expected across all activities. The control panel and auxiliary box's simple design lets the students safely and decisively explore different circuit configurations without worrying about the arrangement. Though actual industrial settings were not present, the system gave an effective basis for knowledge of motor control concepts. At last, the developed trainer offers a practical and easily accessible approach to improve laboratory teaching in motor control, therefore helping students to gain the skills necessary for future employment in the fields of electrical and automation.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis COE	TUP Manila Library	Thesis Section-2nd floor	BTH TK 146 B75 2025 (Browse shelf(Opens below))	c.1.	Not for loan		BTH0006542

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH TK 146 B67 2025 Multifunction roller mill coffee grinder for enhanced energy efficiency and quality for coffee micro-enterprise/	BTH TK 146 B73 2019 Radio frequency identification based car parking monitoring system with automatic card machine dispenser/	BTH TK 146 B73 2025 Iot-based air conditioning unit integrated with air purification, heat signature detection, and monitoring system/	BTH TK 146 B75 2025 Development of motor control trainer integrated with variable frequency drive/	BTH TK 146 B85 2024 Hybrid power IoT-based lumpia wrapper machine/	BTH TK 146 B87 2025 Innovation of darrieus-savonius wind turbine design with quad-axial generator/	BTH TK 146 C33 2016 Prepaid water meter using reloadable RF card with monitoring modem/	Next

Bachelor's thesis

College of Engineering.-- Bachelor of science in electrical engineering: Technological University of the Philippines, 2025.

Includes bibliographic references and index.

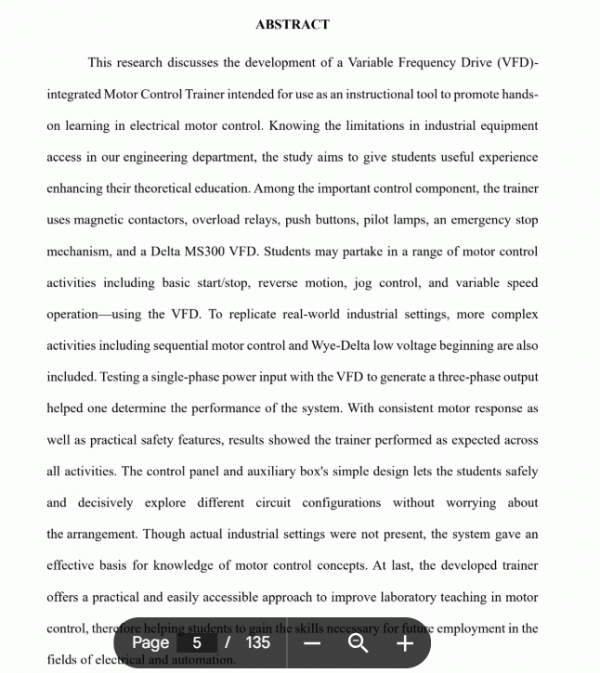

This research discusses the development of a Variable Frequency Drive (VFD)-

integrated Motor Control Trainer intended for use as an instructional tool to promote hands-
on learning in electrical motor control. Knowing the limitations in industrial equipment

access in our engineering department, the study aims to give students useful experience
enhancing their theoretical education. Among the important control component, the trainer
uses magnetic contactors, overload relays, push buttons, pilot lamps, an emergency stop
mechanism, and a Delta MS300 VFD. Students may partake in a range of motor control
activities including basic start/stop, reverse motion, jog control, and variable speed
operation—using the VFD. To replicate real-world industrial settings, more complex
activities including sequential motor control and Wye-Delta low voltage beginning are also
included. Testing a single-phase power input with the VFD to generate a three-phase output
helped one determine the performance of the system. With consistent motor response as
well as practical safety features, results showed the trainer performed as expected across
all activities. The control panel and auxiliary box's simple design lets the students safely
and decisively explore different circuit configurations without worrying about
the arrangement. Though actual industrial settings were not present, the system gave an
effective basis for knowledge of motor control concepts. At last, the developed trainer
offers a practical and easily accessible approach to improve laboratory teaching in motor
control, therefore helping students to gain the skills necessary for future employment in the
fields of electrical and automation.
