Development of an iot-based integrated incubation system for marine turtle eggs/ Jhon Michael B. Alsado, Camille A. Cabusora, Aliah P. Dela Cruz, Kimberly Mae N. Prudencio, and Jahnn Patrick F. Yanga.--

By:

Alsado, Jhon Michael B [author]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2025.Description: xii, 97pages: 29cmContent type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TK 870 A47 2025

Dissertation note: College Of Industrial Technology.-- Bachelor of engineering technology major in electronics technology: Technological University of the Philippines, 2025. Summary: The incubation phase is one of the most vulnerable stages in a marine turtle's life cycle, as eggs laid in sandy environments are highly susceptible to predators, environmental changes, and human disturbances. This study presents an automated turtle egg incubation system designed to provide an optimal and controlled environment for successful hatching. The system consists of three primary components, which include a display section, control buttons, and an incubation chamber. It is powered by an ESP32 microcontroller, which manages various sensors and a 4-channel relay module to regulate temperature and humidity. An OLED display provides real-time monitoring, while a mobile application allows users to remotely track and control the system, ensuring precise incubation conditions. Several types of sands were tested to evaluate if there’s going to be a difference based on factors such as time and weather. The experimental result shows that the soil moisture level of the plant soil dropped to 45% during the dry midday and has a level of 75% when it is moist. Beach sand’s moisture level dropped to 40% during nighttime to early morning and has a level of 70% during the day. For the silty soil, its moisture level shows that it dropped to 40% during the nighttime and early morning hours and has 70% during day daytime. Testing results showed that the turtle egg incubator successfully maintained stable environmental conditions within the specified thresholds for sand moisture, temperature, and humidity. The respondents evaluated the prototype as “excellent” across the given criteria with an overall mean of x̄ = 4.52. The findings of this research indicate that the method not only improves the chances that marine turtle eggs will survive but also provides useful information for continued study and conservation initiatives. Future enhancements should focus on improving automation, enhancing structural durability, and adapting to various environmental conditions to maximize the system’s effectiveness.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Date due	Barcode
Bachelor's Thesis CIT	TUP Manila Library	Thesis Section-2nd floor	BTH TK 870 A47 2025 (Browse shelf(Opens below))	c.1	Not for loan		BTH0006737

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH TK 870 A37 2023 Development of waste segregation system using machine learning/	BTH TK 870 A43 2023 Development of Portable Canal Cleaner System	BTH TK 870 A47 2024 Design and implementation of 5g network system for cit electronics department/	BTH TK 870 A47 2025 Development of an iot-based integrated incubation system for marine turtle eggs/	BTH TK 870 A48 2024 Development of 3d printing filament extrusion machine using polyethylene terephthalate bottle/	BTH TK 870 A54 2022 Development Of Automated Flood Level Warning Device With Sms Notification/	BTH TK 870 A54 2023 V-watch: Vital Sign Monitoring System/	Next

Bachelor's thesis

College Of Industrial Technology.--
Bachelor of engineering technology major in electronics technology: Technological University of the Philippines,
2025.

Includes bibliographic references and index.

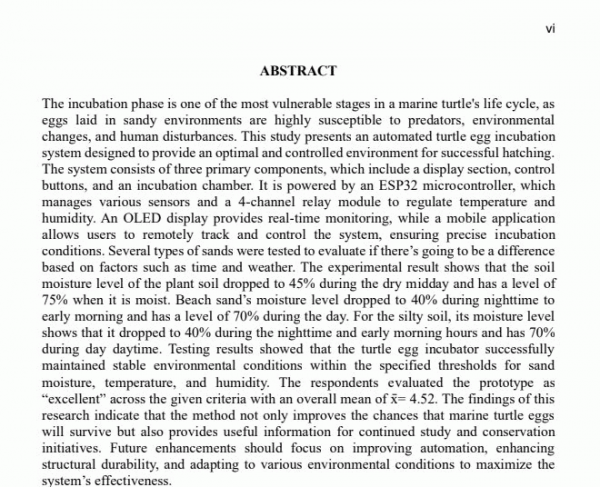

The incubation phase is one of the most vulnerable stages in a marine turtle's life cycle, as
eggs laid in sandy environments are highly susceptible to predators, environmental
changes, and human disturbances. This study presents an automated turtle egg incubation
system designed to provide an optimal and controlled environment for successful hatching.
The system consists of three primary components, which include a display section, control
buttons, and an incubation chamber. It is powered by an ESP32 microcontroller, which
manages various sensors and a 4-channel relay module to regulate temperature and
humidity. An OLED display provides real-time monitoring, while a mobile application
allows users to remotely track and control the system, ensuring precise incubation
conditions. Several types of sands were tested to evaluate if there’s going to be a difference
based on factors such as time and weather. The experimental result shows that the soil
moisture level of the plant soil dropped to 45% during the dry midday and has a level of
75% when it is moist. Beach sand’s moisture level dropped to 40% during nighttime to
early morning and has a level of 70% during the day. For the silty soil, its moisture level
shows that it dropped to 40% during the nighttime and early morning hours and has 70%
during day daytime. Testing results showed that the turtle egg incubator successfully
maintained stable environmental conditions within the specified thresholds for sand
moisture, temperature, and humidity. The respondents evaluated the prototype as
“excellent” across the given criteria with an overall mean of x̄ = 4.52. The findings of this
research indicate that the method not only improves the chances that marine turtle eggs
will survive but also provides useful information for continued study and conservation
initiatives. Future enhancements should focus on improving automation, enhancing
structural durability, and adapting to various environmental conditions to maximize the
system’s effectiveness.
