Property characterization of composite board utilizing coconut shell particles and coconut coir bonded with vinyl ester resin/ Rafael S. Agito, John Roque M. Angon, Christopher Avenda, Angelica E. Faller, John Daryll T. Lente, Kristine Jewel D. Nepales, and Aljohn G. Quilicol .--

By:

Agito, Rafael S [author ]

Contributor(s):

Material type: Text

TextPublication details: Manila: Technological University of the Philippines, 2023.Description: xii, 142pages: 29cm. +1 CD-ROM (4 3/4in.)Content type:

Media type:

Carrier type:

Subject(s):

LOC classification:

BTH TA 145 A35 2023

Dissertation note: College of Engineering.-- Bachelor of Science in Civil Engineering: Technological University of the Philippines, 2023. Summary: The study utilized coconut waste products, specifically coir and shell, as reinforcement for composite board bonded with vinyl ester resin. Coconut coir was extracted from the coconut husk, cleaned, cut into 3 cm length fibers, and treated with NaOH for 72 hours. As for the filler material, coconut shells were crushed, sieved through a 100-mesh size, and treated with NaOH for 2 hours. Eight (8) design mixes were prepared. The composite boards were fabricated using hand lay-up method, and the boards were evaluated in accordance to ASTM D1037 and Philippine National Standards (PNS). Samples were tested for water absorption, thickness swelling, modulus of rupture, and nail head pull through. The treated coconut coir indicates a tensile strength of 9.28 Kgf/g.m and an elongation of 31.76%. On the other hand, the chemical properties of the coconut shell particles were found to have less potential to absorb the moisture from surrounding due to its morphological aspects. Regarding the physical properties of the composite board, all design mixes passed the PNS. Design mix A had the lowest water absorption at 1.24%, and design mix F had the lowest thickness swelling with 0.27%. For the mechanical properties of the composite board, all boards passed the PNS. For the modulus of rupture, all eight design mixes can be classified as Type 100, while design mixes E, F, G and H containing 15% coconut coir can be classified as Type 150, as well. Only design mix E and G can be classified as Type 200. Moreover, for the nail head pull through design mix G had the highest mean value of 414.62 kg. Analysis of all test results revealed that Design Mix G with 20 CSP: 15CF: 65VE is the optimum ratio.

Tags from this library: No tags from this library for this title. Log in to add tags.

Average rating: 0.0 (0 votes)

Holdings
Item type	Current library	Shelving location	Call number	Copy number	Status	Notes	Date due	Barcode
Bachelor's Thesis COE	TUP Manila Library	Thesis Section-2nd floor	BTH TA 145 A35 2023 (Browse shelf(Opens below))	c.1.	Not for loan	For library use only		BTH0003943

Browsing TUP Manila Library shelves, Shelving location: Thesis Section-2nd floor Close shelf browser (Hides shelf browser)

Previous	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	No cover image available	Next
Previous	BTH GV 1469.2 C66 2015 Development of Android-Based Squabble Games/	BTH SB 317 C78 2022 Strength performance of bamboo-reinforced column with internal bamboo culm/	BTH TA 145 A23 2023 Strength performance analysis of various type of joint Connections for kawayan tinik (bambusa blumeana) bamboo Scaffolding/	BTH TA 145 A35 2023 Property characterization of composite board utilizing coconut shell particles and coconut coir bonded with vinyl ester resin/	BTH TA 145 A37 2023 Property characterization of concrete with water hyacinth ash and banana peel pectin as partial replacement to cement/	BTH TA 145 A38 2019 Property characterization of cement-bounded particle board using powdered scoria as partial replacement to cement and waste falcata particles as raw materials/	BTH TA 145 A43 2024 Vibration Analysis Of College Of Engineering (Coe) Building At The Technological University Of The Philippines – Manila Using Raspberry Shake 4d And Artificial Neural Network/	Next

Thesis (undergraduate)

College of Engineering.-- Bachelor of Science in Civil Engineering: Technological University of the Philippines, 2023.

Includes bibliography:

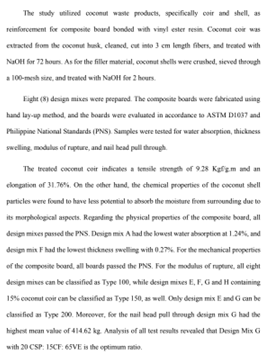

The study utilized coconut waste products, specifically coir and shell, as
reinforcement for composite board bonded with vinyl ester resin. Coconut coir was
extracted from the coconut husk, cleaned, cut into 3 cm length fibers, and treated with
NaOH for 72 hours. As for the filler material, coconut shells were crushed, sieved through
a 100-mesh size, and treated with NaOH for 2 hours.
Eight (8) design mixes were prepared. The composite boards were fabricated using
hand lay-up method, and the boards were evaluated in accordance to ASTM D1037 and
Philippine National Standards (PNS). Samples were tested for water absorption, thickness
swelling, modulus of rupture, and nail head pull through.
The treated coconut coir indicates a tensile strength of 9.28 Kgf/g.m and an
elongation of 31.76%. On the other hand, the chemical properties of the coconut shell
particles were found to have less potential to absorb the moisture from surrounding due to
its morphological aspects. Regarding the physical properties of the composite board, all
design mixes passed the PNS. Design mix A had the lowest water absorption at 1.24%, and
design mix F had the lowest thickness swelling with 0.27%. For the mechanical properties
of the composite board, all boards passed the PNS. For the modulus of rupture, all eight
design mixes can be classified as Type 100, while design mixes E, F, G and H containing
15% coconut coir can be classified as Type 150, as well. Only design mix E and G can be
classified as Type 200. Moreover, for the nail head pull through design mix G had the
highest mean value of 414.62 kg. Analysis of all test results revealed that Design Mix G
with 20 CSP: 15CF: 65VE is the optimum ratio.
